Marine Transmission Coupler Measurement Diagram

Marine Transmission Coupler Measurement Diagram

Posted by Chris on Dec 10th 2020

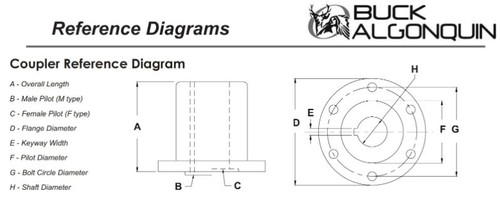

A common issue we run into when a customer calls in looking for a transmission coupler is determining which coupler they need.  Sometimes we can look up the engine / transmission to get an idea of what they need.  However, since our charts are not necessarily 100% accurate and there may have been modifications made to the engine or transmission, we always want to verify coupler dimensions.  The difficulty arises in communicating which measurements we want.  As a solution, Buck Algonquin / Hydrasearch has provided us the coupler measurement diagram below.  If you have any questions, please give us a call or send an email. Click here for the shaft couplers we offer online.  If you need a coupler we do not have on our website, please call or email.
